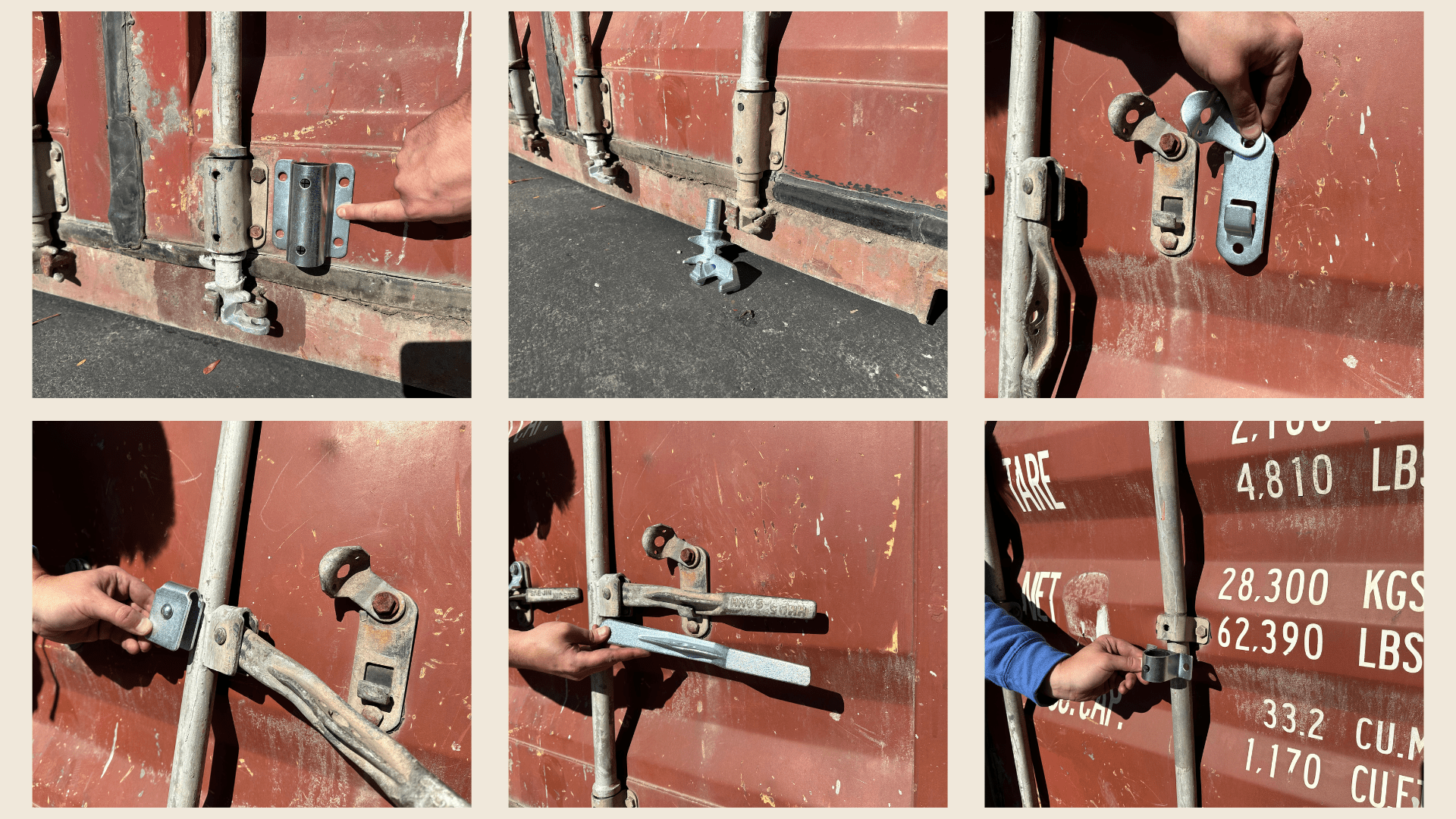

Step-by-Step Installation

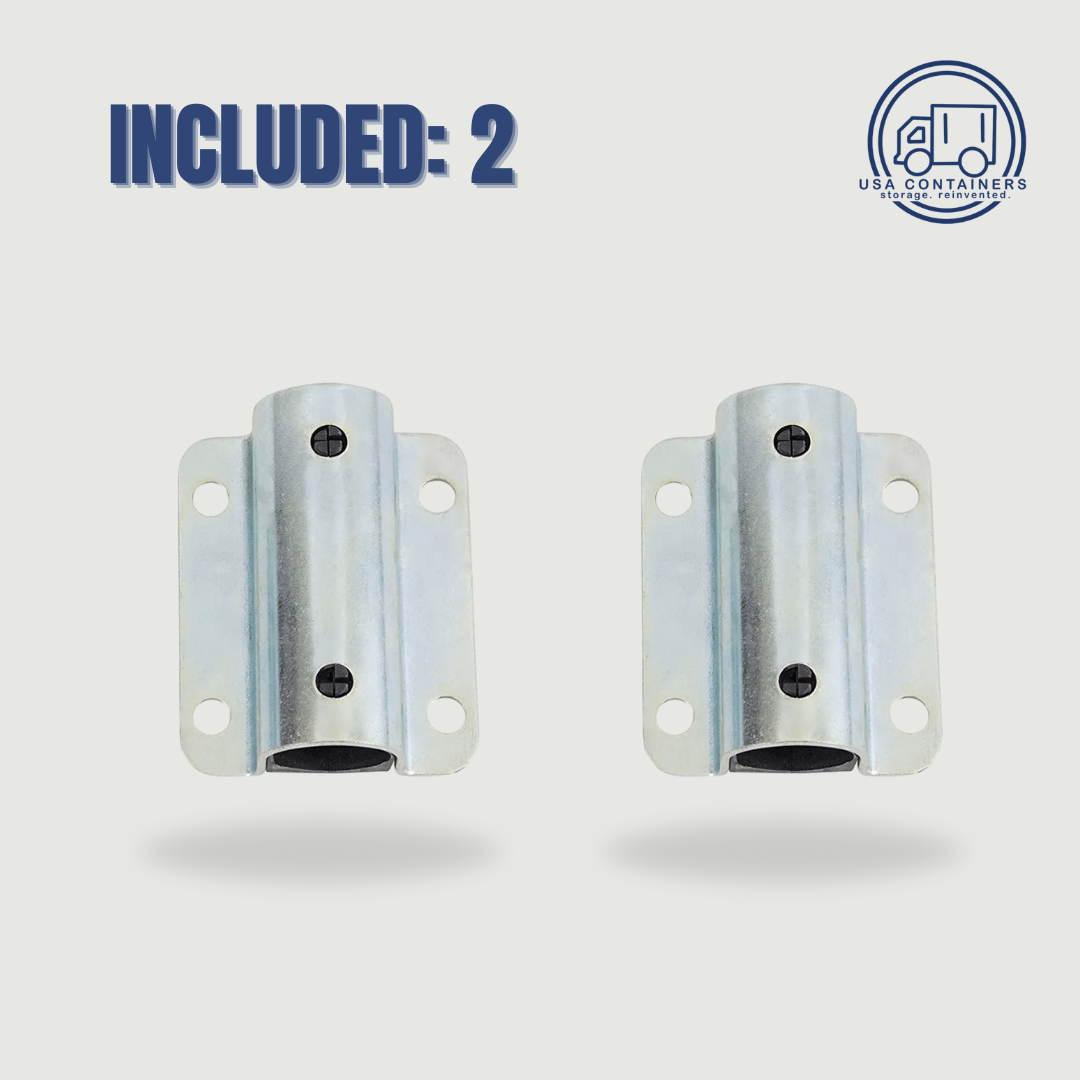

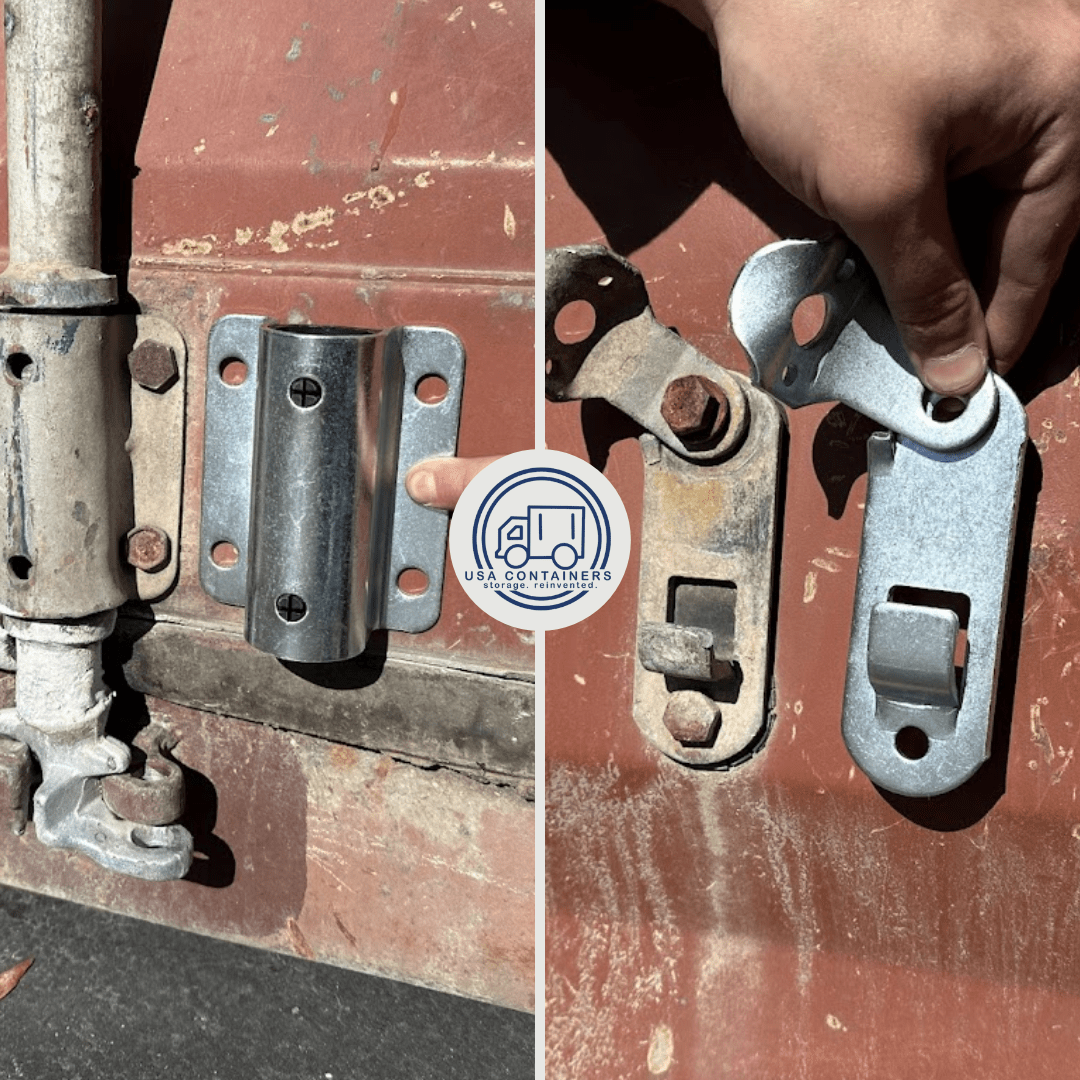

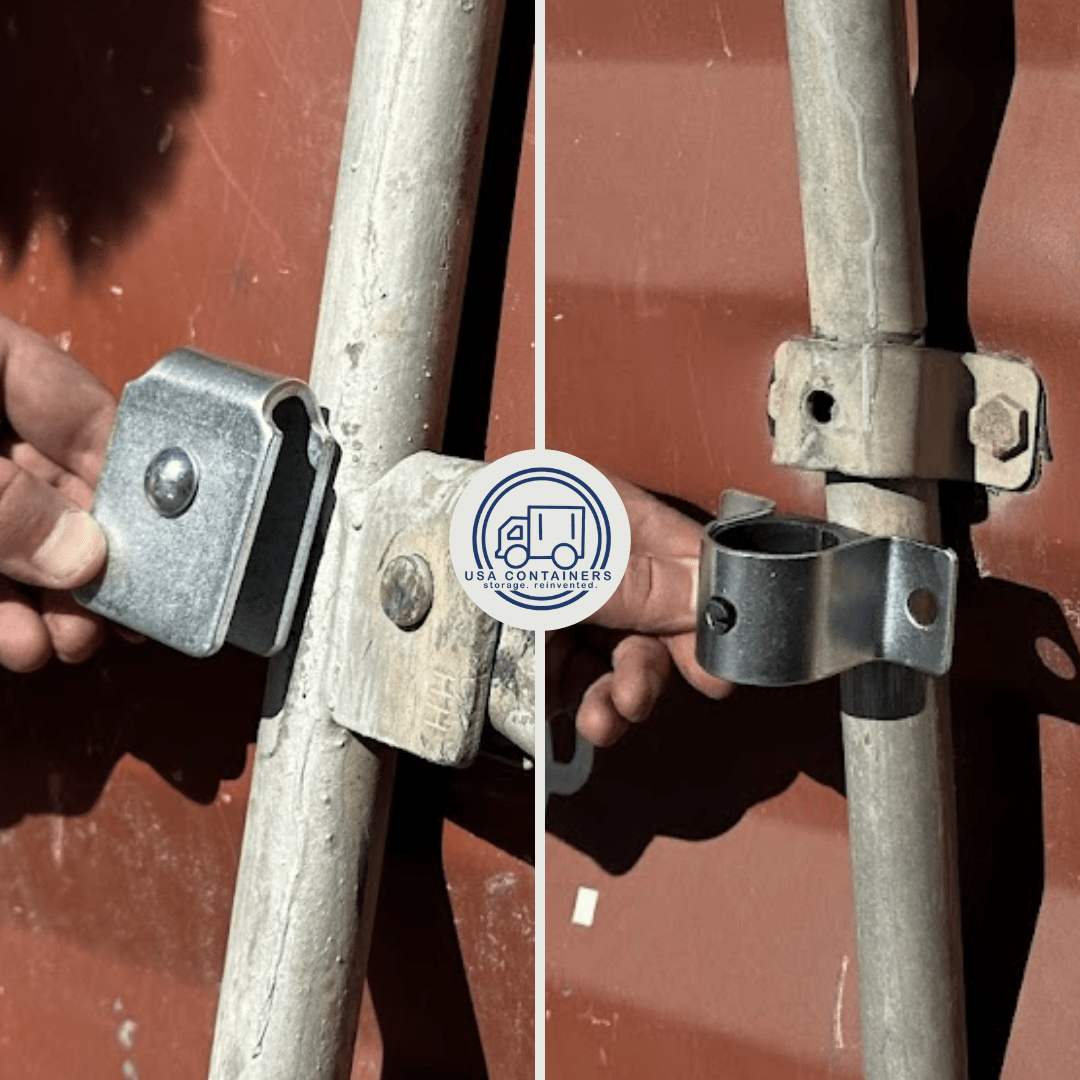

Step 1: Replace the Guide Bushings (Bar Holders)

1. Locate the damaged or rusted guide brackets that hold the vertical locking bars against the container door (one near the top and one near the bottom).
2. Unbolt or remove the old brackets from the door frame.
3. Position the new guide bushings over the vertical bar, aligning them with the factory mounting points.
4. Securely bolt them into place. These new brackets will securely hold the vertical rod and smoothly guide its rotation as the door opens and closes.

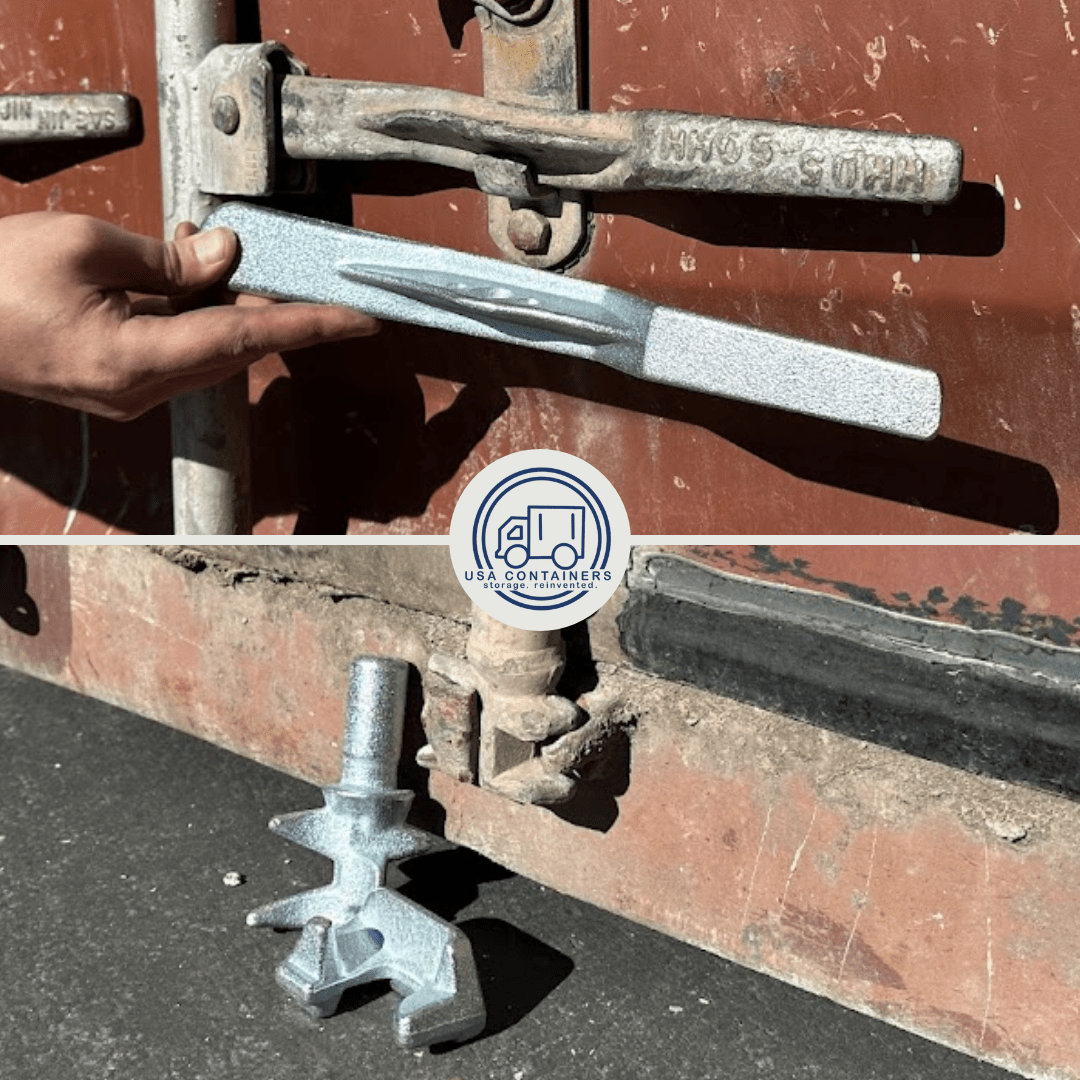

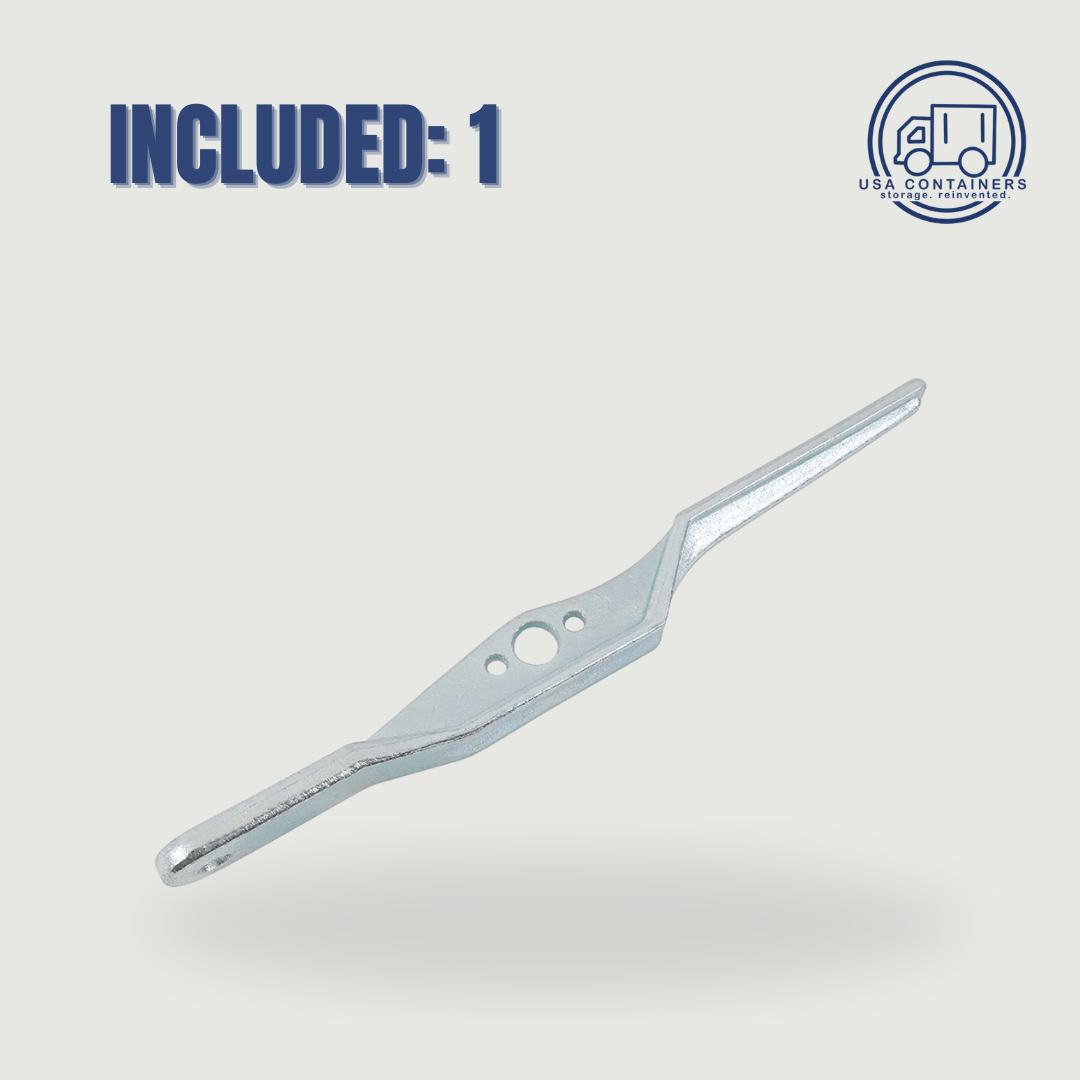

Step 2: Swap Out the Door Handle and Pivot Point

1. Remove the hardware from the old, bent door handle assembly.
2. Line up the new door handle with the door's built-in locking mechanism.

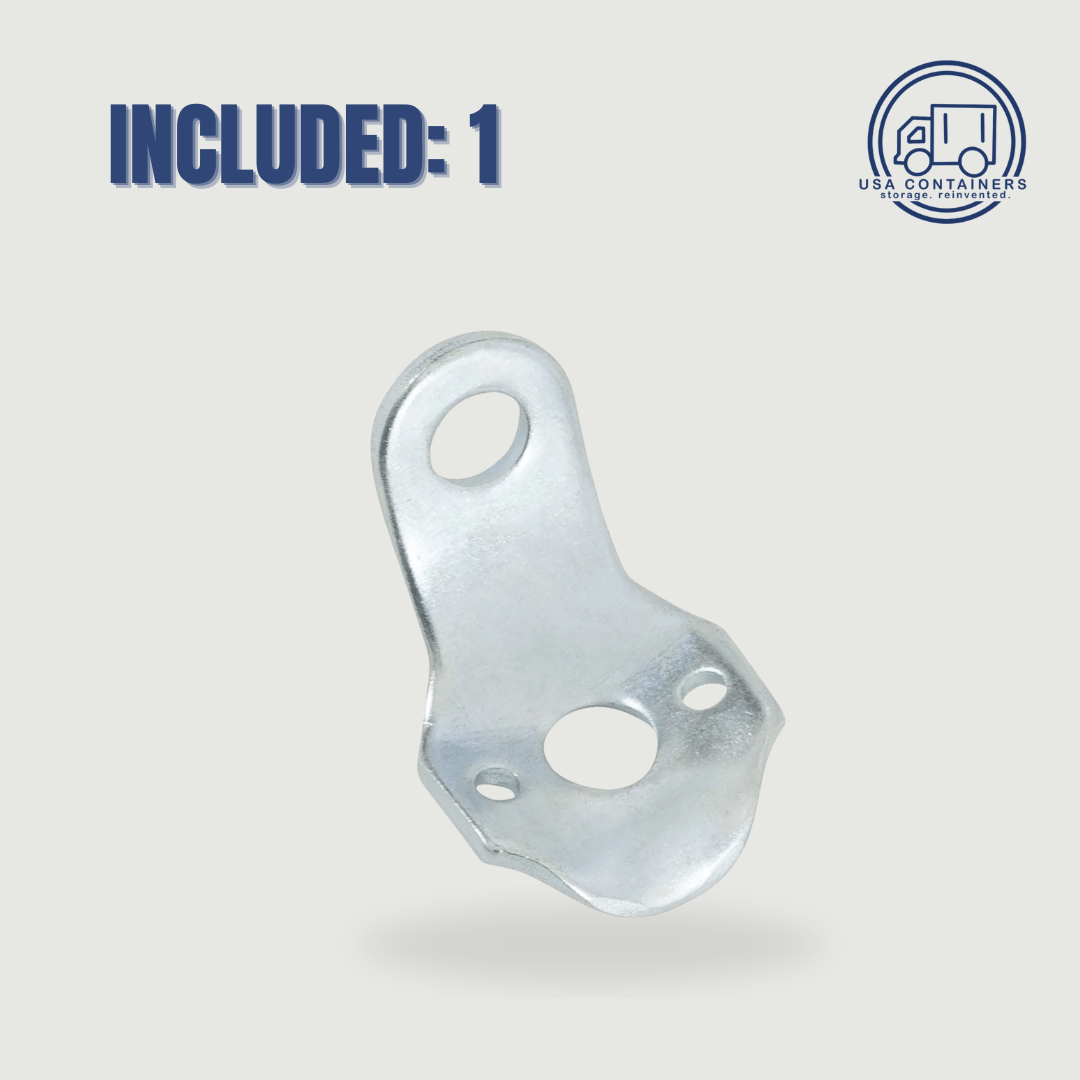

3. If the master pivot housing is structurally compromised, use a standard welder to mount the replacement pivot point bracket directly to the door face.
4. Pro-Tip: To connect the handle to its pivot point, use the provided heavy-duty rivet for a factory finish. If you do not have a specialized rivet gun on hand, a standard high-grade bolt and lock nut can be used instead to tightly secure the handle.

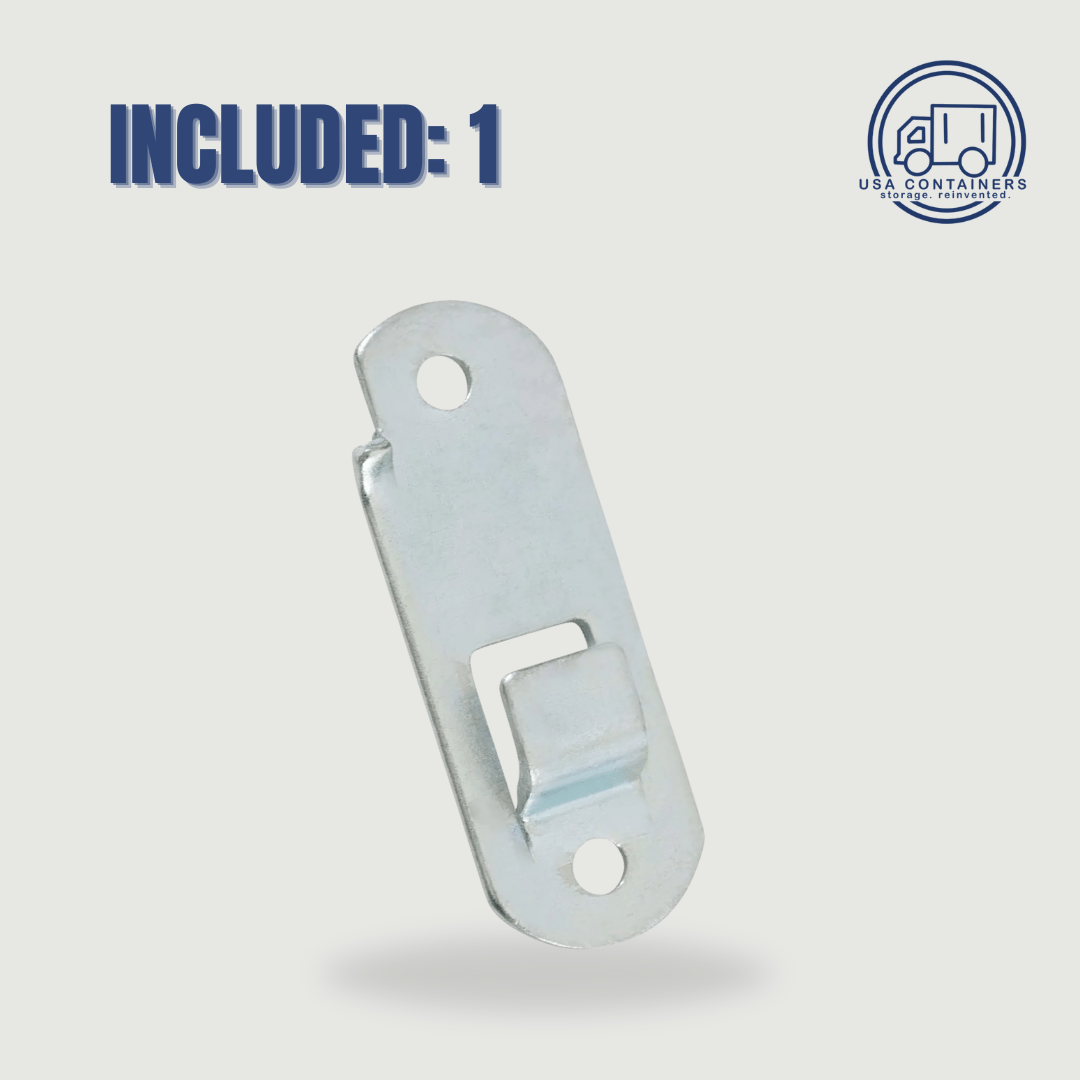

Step 3: Replace the Handle Latching Catch

1. Locate the door latch keeper/catch mechanism on the door where the handle snaps flat to lock.
2. If the old catch is missing, bent, or heavily rusted, remove it.
3. Align the new latching mechanism and secure it tightly to the door so the new handle sits flush and locks properly without friction.

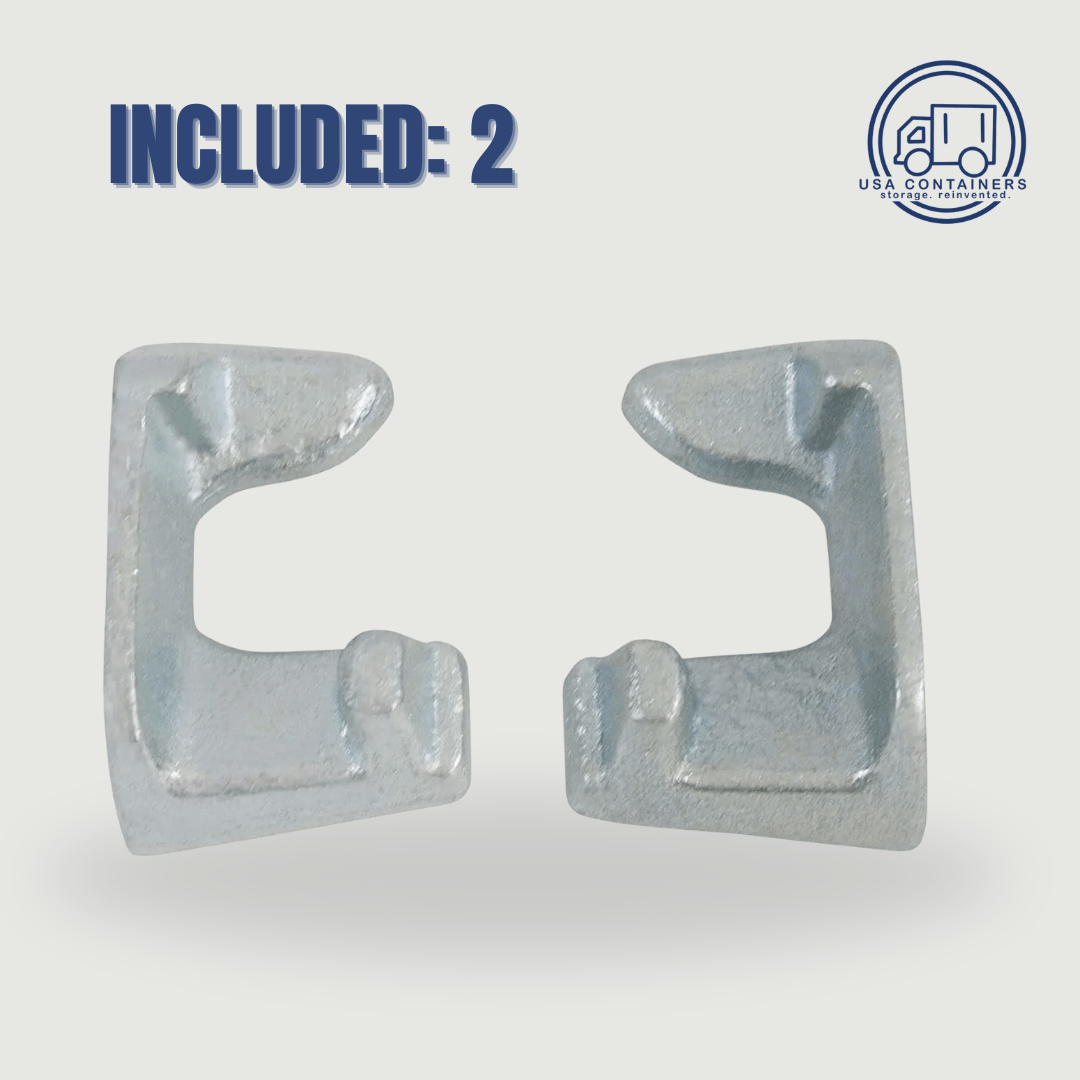

Step 4: Install the Top and Bottom Locking Cams

1. Move to the very top and very bottom ends of the long vertical locking bar.
2. Remove the worn or bent locking teeth (cams) that hook into the container's outer frame.
3. Insert and secure the new top and bottom locking pieces directly into the ends of the door bar, ensuring they point in the correct matching direction to latch safely into the frame keepers.

Step 5: Install the Smooth-Glide Bearings

1. Take the set of 5 O-ring bearings included in the hardware kit.
2. CRITICAL STEP: Slide these specialized ring bearings directly into the structural joints and contact points along the vertical locking rod assembly. Skipping these will cause grinding; installing them ensures the metal components pivot with minimal friction, making tight doors incredibly easy to swing open.
