Shipping Container Sliding Window with Weld-On Steel Frame & Security Bars - 26-1/2" Dual-Pane
Shipping Container Sliding Window with Weld-On Steel Frame & Security Bars - 26-1/2" Dual-Pane

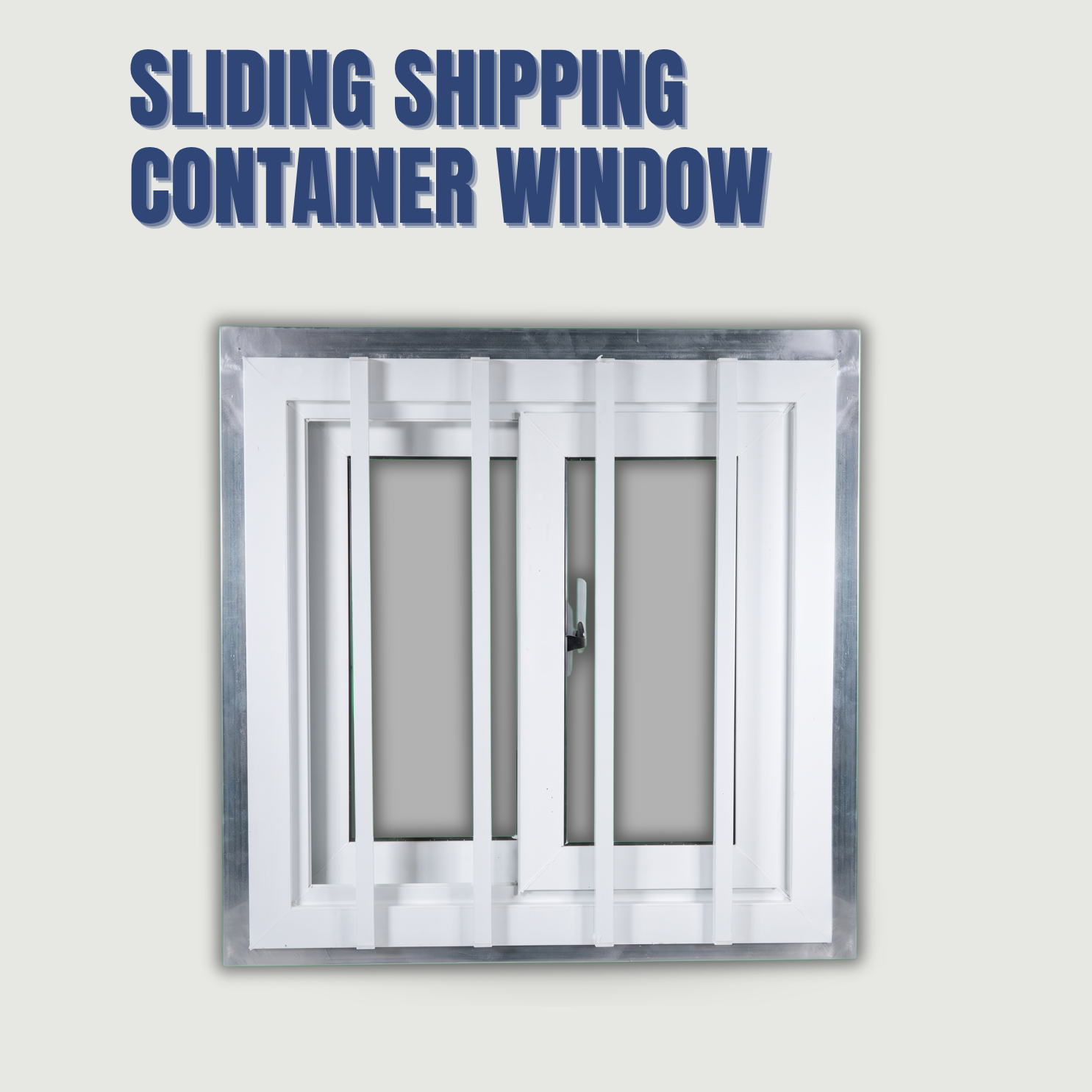

Add daylight and airflow to your container without giving up security. This kit pairs a dual-pane sliding PVC window with a weld-on steel tube frame and welded security bars, so you get a finished, lockable opening that's built into the container wall rather than bolted onto it. Sliding sashes mean no swing clearance is needed inside or out, and the built-in mesh screen lets you leave it open without letting bugs in.
Description
Built for containers, not borrowed from a house.
Cutting into corrugated steel creates a weak point. The included steel tube frame welds directly into your cut opening and re-establishes structural rigidity around the hole, giving the window a square, true seat to bolt into. Weld the tube once and the window itself can be serviced or replaced later without ever touching a grinder again.

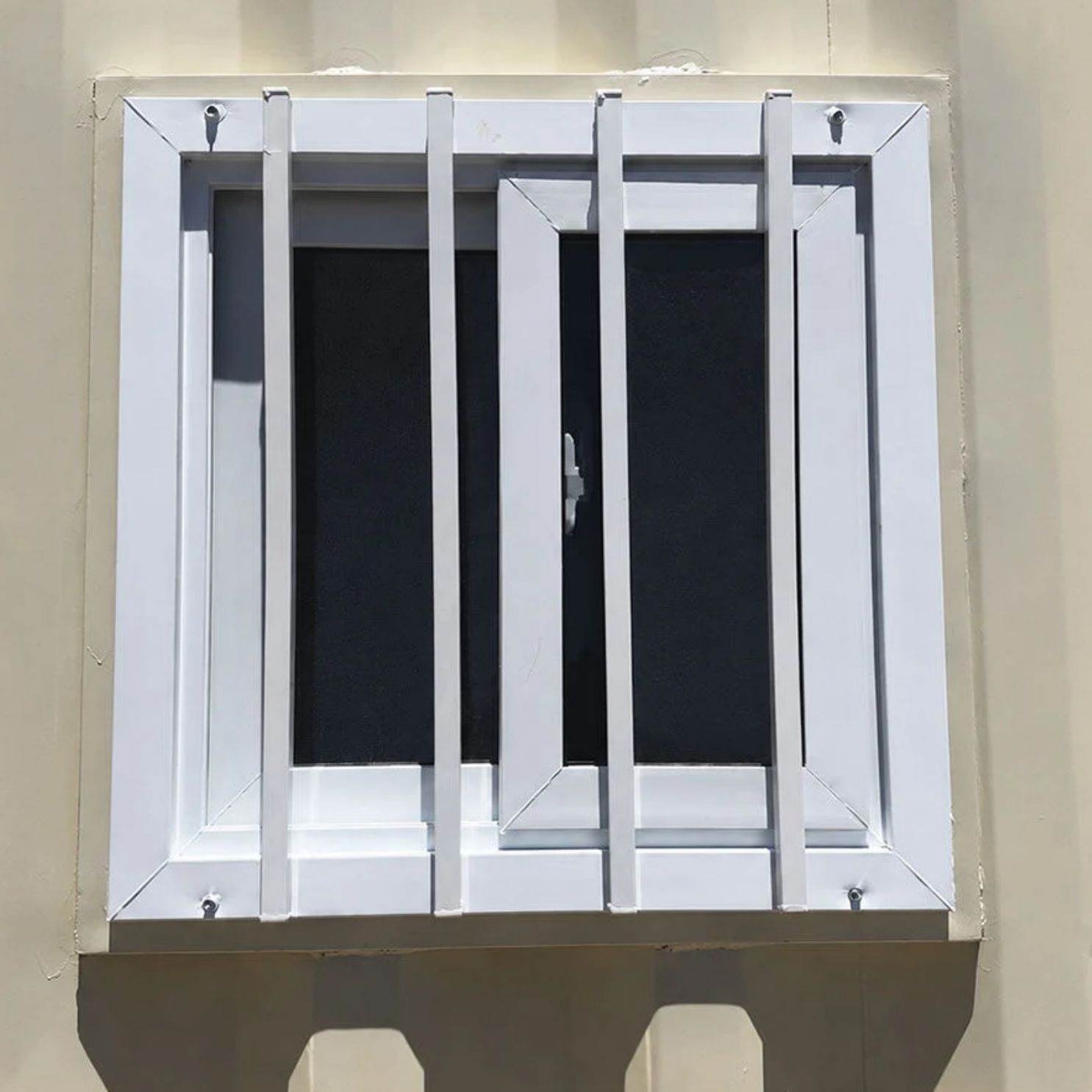

Security bars that are part of the frame.
The bars are welded in, not clipped on. Anyone looking at the outside of your container sees a barred opening, which matters for job-site storage, remote workshops, and anything holding tools overnight.
Dual-pane glass fights container sweat.
Single-pane glass in a steel box is a condensation machine. The insulated dual-pane glazing holds a more stable interior surface temperature, which cuts down on the dripping and moisture problems that ruin stored inventory and drywall in converted units.
Sliding operation, zero clearance required.
Container interiors are tight and the exteriors often sit close to fences, other containers, or equipment. The sashes slide horizontally, so nothing swings into a shelving run or an aisle.

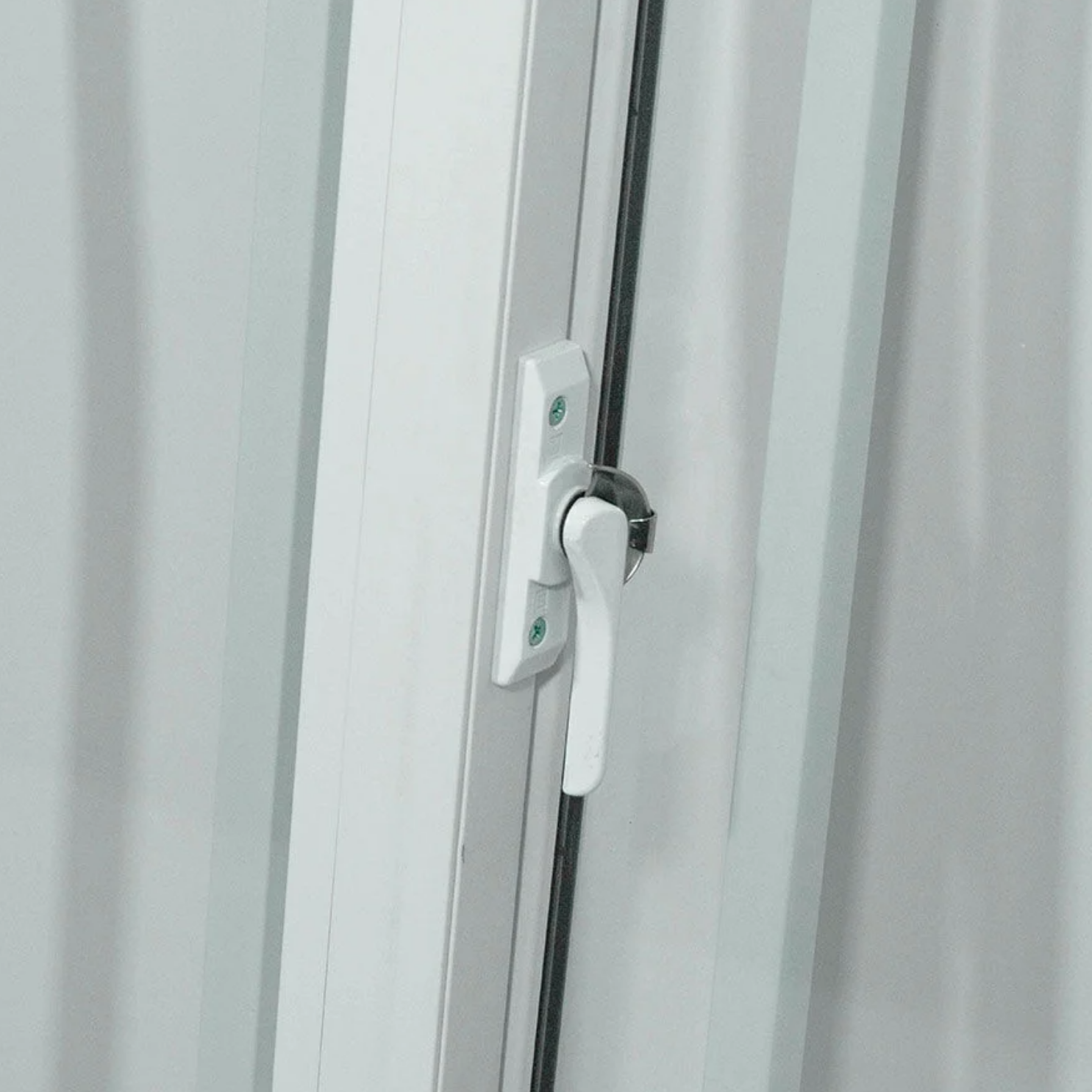

Lock it and leave it.
An integrated security locking system secures the sliding sash in the closed position. The removable mesh screen lets you ventilate in warm weather without the insects.
Rust-proof white PVC frame.
No painting, no corrosion, no annual maintenance. The white frame reads clean against both painted and weathered container walls.
What's Included
- Weld-on steel tube frame (1)
- PVC window frame (1)
- Sliding dual-pane window with security bars and mesh screen (1)
Specifications
- Window Size: 26-1/2" x 26-1/2" x 3-1/4"
- Steel frame size: 28-3/4" x 28-3/4" x 2-3/8"
- PVC Frame Size: 26-3/4" x 26-3/4" x 2-3/8"
- Window Material: Polyvinyl Chloride (PVC
- Color: White
- Glass: Dual-pane insulated
- Installation: Weld-on steel tube, bolt-on window
- Security: Welded steel bars + integrated locking system
Installation Overview
Mark and cut your opening to receive the 28-3/4" steel tube, weld the tube into the container wall, then bolt the PVC window frame into the tube. A grinder or plasma cutter, a welder, and basic hand tools are all that's needed. Most installers complete a single window in a few hours.
